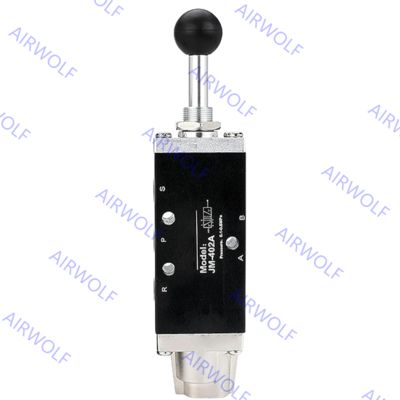

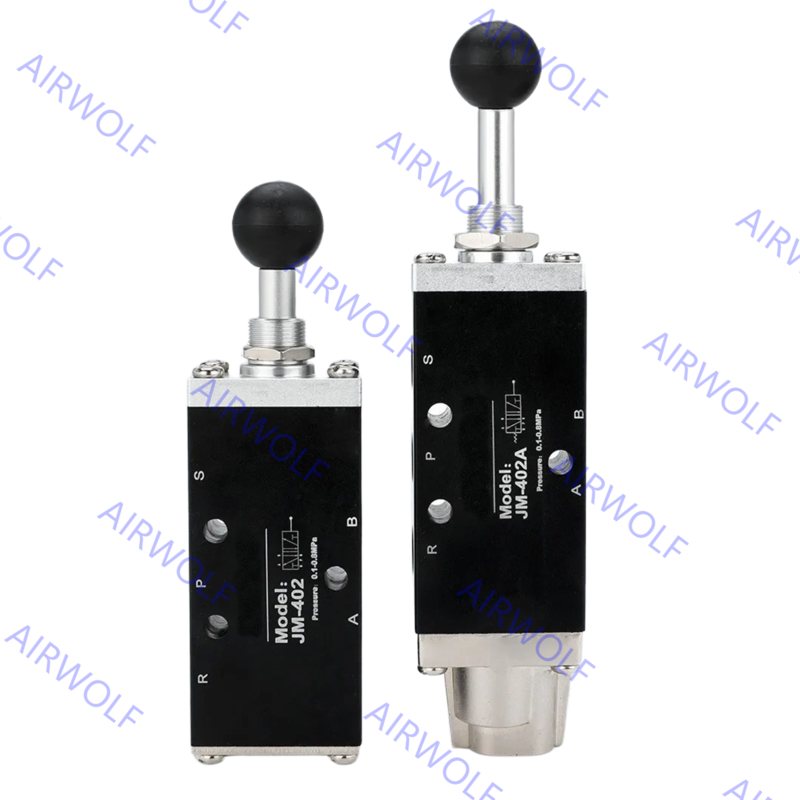

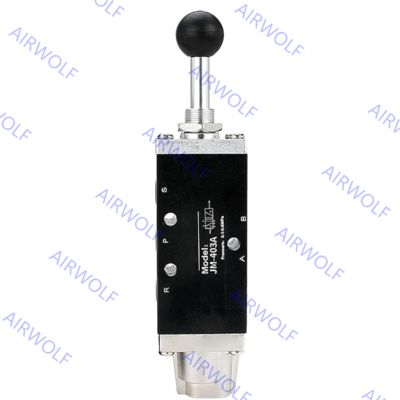

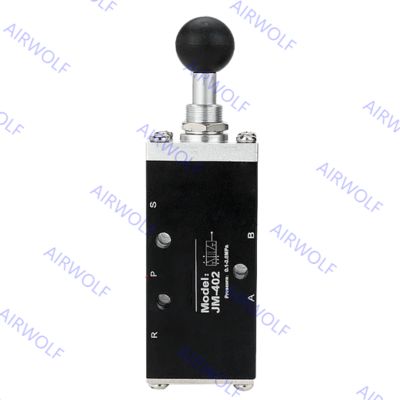

Name: JM-402, JM-402A, JM-403, JM-403A Sunrise JM Series 5/2 way Hand Pull Valve 1/4", 3/8"
Brand: Airwolf Automation
SKU: JM-402, JM-402A, JM-403, JM-403A
Price: 7.00 USD
Availability: InStock

Thuis Producten Handmatige pneumatische klep

JM-402, JM-402A, JM-403, JM-403A Sunrise JM Series 5/2 way Hand Pull Valve 1/4", 3/8"

Productdetails:

Plaats van herkomst:	Taiwan-China, China
Merknaam:	Sunrise, Nielsen, AIRWOLF or OEM
Certificering:	CE
Modelnummer:	JM-402, JM-402A, JM-403, JM-403A

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1 stuk
Prijs:	7-8USD
Verpakking Details:	Dozen, dozen, pallets, plastic zakken
Levertijd:	1-7 werkdagen
Betalingscondities:	T/T, Western Union, PAYPAL
Levering vermogen:	1000 pc's per week

Contact

Gedetailleerde productomschrijving

Puntcode:	JM-402, JM-402A, JM-403, JM-403A	Bedrijfsdruk:	0,1 ~ 0,8 mpa
Werktemperatuurbereik:	–20~+70℃	Poortgrootte:	1/4“, 3/8“
Positie:	5/2 Manier	Functie:	Directionele besturing
Markeren:	5/2 way pneumatic hand pull valve , pneumatic manual valve with directional control , 1/4 inch port pneumatic valve

JM-402, JM-402A, JM-403, JM-403A Sunrise JM Series 5/2 way Hand Pull Valve 1/4", 3/8"

The Sunrise JM Series (models JM-402, JM-402A, JM-403, JM-403A) are 5/2-way hand-pull valves, which are manually operated directional control valves used in pneumatic systems. Their core function is to direct compressed air flow to control actuators, most commonly double-acting cylinders, by shifting between two distinct positions to alternate the cylinder's extension and retraction. The "5/2" designation indicates the valve has five ports (for air supply, cylinder connections, and exhaust) and two switching positions. The manual "pull" operation provides direct and reliable control, making these valves suitable for applications where manual intervention, setup, testing, or safety override is required.

Order Codes:

Item Code	Port Size	Positions
JM-402	1/4"	5/2 way
JM-402A	1/4"	5/2 way
JM-403	3/8"	5/2 way
JM-403A	3/8"	5/2 way

Quality Standards:

The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections.

Samples:

You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.

After-sale service:

We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

Competitive Advantage:

Our product features:	Our Services Guarantee:
1) Competitive price	1) Prompt respond (Reply with 24 hours)
2) Good quality	2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging	3) 1 year warranty
4) Produce according to Customers’ instruction	4) Photos/videos are available during production.
5) None delay shipment	5) Loading inspection, and send loading photos before shipment.

label:
Pneumatische mechanische klep,

Voetpedaal Valve,

handmatige ventiel actuator
